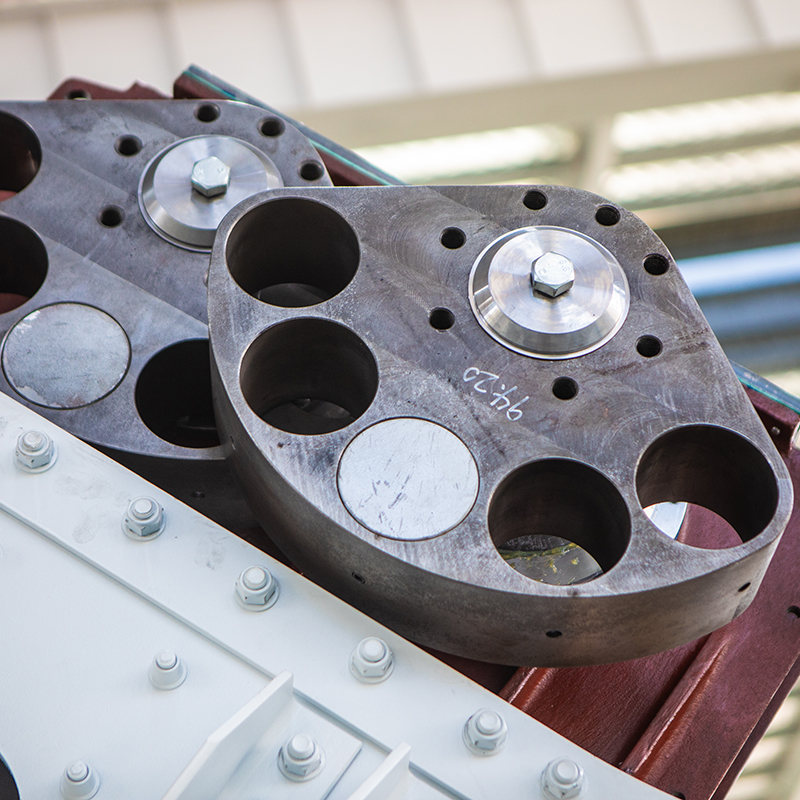

Customized Exciters for Circular Vibrating Screens

Customized Vibrating Exciters

Engineering Excellence: Circular Screens in Thick Seam Mining Operations

In modern extraction industries, thick seam mining—defined as coal or mineral seams exceeding 3.5 meters in thickness—presents exceptional mechanical and operational demands. Whether utilizing Longwall Top Coal Caving (LTCC) in underground reserves or high-bench open-cast extraction, the volume of run-of-mine (ROM) feed is massive, highly abrasive, and prone to rapid surge loads. Efficient primary classification under these conditions requires robust equipment capable of handling high static forces while maintaining precise sizing accuracy. The circular screen (circular vibrating screen) has emerged as the definitive industrial standard for primary and scalp screening in thick seam processing environments worldwide.

Unlike linear screens that utilize dual counter-rotating shafts to propel material along a straight horizontal plane, a circular motion vibrating screen generates an elliptical or true circular motion through a single eccentric shaft or twin shaft system driven by specialized exciters. This circular trajectory provides constant centrifugal action, preventing heavy lump material from blinding the screen deck, rapidly stratifying the bed layer, and ensuring high-velocity throw dynamics indispensable for thick seam coal preparation, iron ore classification, and hard-rock mineral beneficiation.

High Stratification Efficiency

The circular motion throw dynamic ensures rapid displacement of coarse rocks on top of the material bed while allowing fine particles to migrate down to the screen media quickly, eliminating bed stagnation.

Heavy-Duty Structural Integrity

Built with high-tensile steel side plates, huck-bolted construction, and stress-relieved crossbeams, circular screens withstand continuous impact forces exceeding 5G acceleration.

Anti-Blinding Media Compatibility

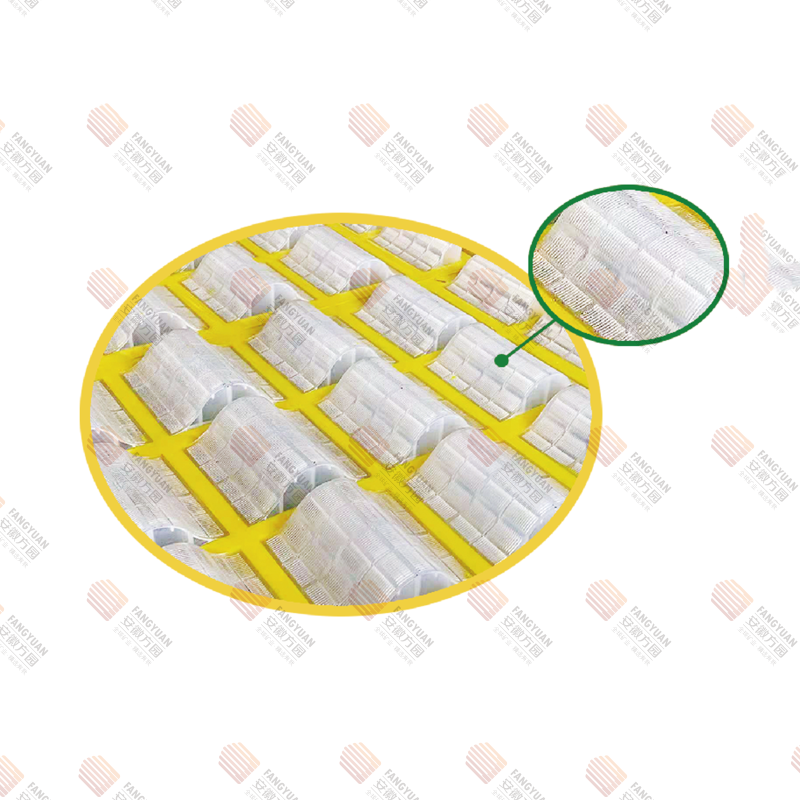

Seamlessly integrates with premium polyurethane wave-shaped panels, heavy-duty TPU hot-melt wire meshes, and rubber liners to handle moist or sticky thick seam overburden.

Commercial Trends & Deep Application Scenario Analysis

Navigating the Shift Toward Smart Automation, Sustainable Processing, and High-Tonnage Yields

1. Commercial and Industrial Market Trends

The global mining landscape is undergoing a massive shift toward operational efficiency and resource stewardship. As high-grade shallow mineral deposits deplete, mining enterprises are increasingly turning to complex, ultra-thick underground seams and massive open-pit deposits. This operational reality shapes several distinct commercial trends for circular screens in thick seam mining:

Integration of IoT & Real-Time Predictive Diagnostics: Modern circular vibrating screens are no longer isolated mechanical units. Mining operations equip exciters and bearing housings with wireless vibration, temperature, and acoustic sensors. Real-time predictive maintenance algorithms detect early shaft misalignment, bearing fatigue, or structural resonance before catastrophic downtime occurs.
Transition from Steel to Polyurethane Screen Media: Traditional woven steel wire screens wear out within days under high-velocity thick seam coal or ore impacts. The market has shifted heavily toward modular polyurethane screen panels, polyurethane fine screen mesh, and synthetic rubber linings. These advanced polymers reduce noise pollution by up to 15 dB while offering 5x to 10x longer wear life.
Energy-Efficient Dynamic Balancing: Industrial power consumption is a primary cost driver. Modern customized exciters feature optimized eccentric mass weights and low-friction spherical roller bearings, achieving maximum screening G-forces while lowering total power consumption per ton of processed material.

Key Technical Insights for Thick Seam Mining Operations

In thick seam coal handling prep plants (CHPP), raw coal surge loads can exceed 3,000 tons per hour (TPH). A circular screen situated at the ROM scalping stage must feature a stroke angle typically adjusted between 15° and 25° incline. The circular vibration motion prevents continuous wedging of near-size particles, maintaining an open screening area even when slurry moisture levels spike.

2. Deep Application Scenarios in Thick Seam Mining

Circular screens serve pivotal roles across diverse mineral processing circuits where thick seam extractions take place:

Scenario A: Underground Coal Longwall Top Coal Caving (LTCC)

In LTCC operations, massive coal blocks mixed with roof rock drop onto the face conveyor. The primary circular screen receives raw ROM feed, scalping off oversized slate and rock (+150mm) while directing fine and intermediate coal (-50mm) directly to heavy-medium cyclones. The constant circular acceleration prevents sticky coal mud from coating the screen surface, preserving high throughput capacity.

Scenario B: Open-Pit Heavy Iron Ore & Metallic Mineral Scalping

In thick seam iron ore extractions, high-density ore creates extreme impact stress on primary scalpers. Circular vibrating screens equipped with flexible heavy-duty rubber linings or modular CPU molding panels absorb heavy kinetic impacts. The circular motion rapidly flips iron ore lumps, exposing hidden fines and preventing excessive carrying over of high-grade minerals into waste rock piles.
