FY-SIEVE Polyurethane Fine Screen Mesh

Short Description:

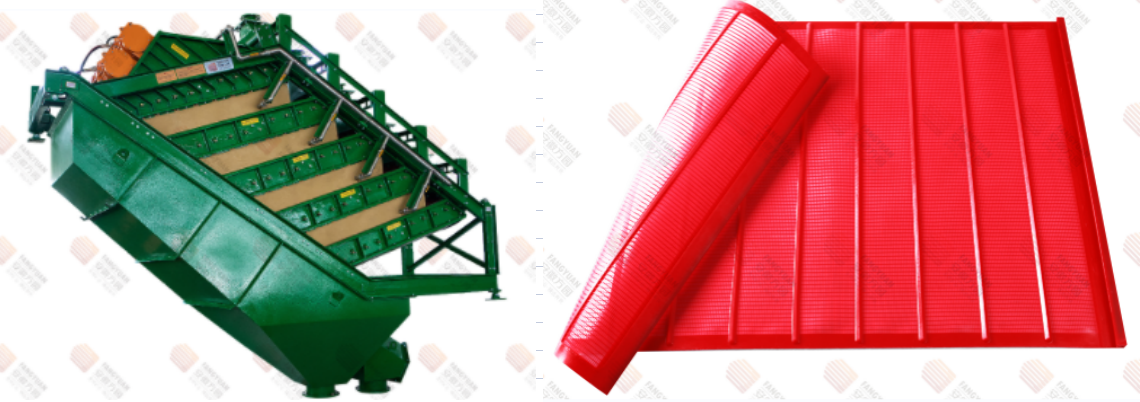

FY-SIEVE Polyurethane fine screen mesh is manufactured with global high quality raw materials and produced by advanced producing line. Installed on the multi-deck high frequency screens, they are widely used in screening, classification, and demineralization for fine materials including iron ore, , copper, tungsten, zinc, lead, coal, sand, sillicon and other metal and non-metal materials. The applications are excellent, our clients are pretty satisfied with our products and service. size 1044x702mm


Product Detail

Product Tags

Specification

Item

Specification(mm)

Aperture(mm) Open Area(%) Weight(kg)

1

1044x702

 From 0.075mm to 1.0mm  32%- 42% 1.51kg - 2.5kg

2

1050x702

3

1220x702

4

1245x702

5

1245x840

Mark: Other size can be customed.

Advantage

● Superior capacity and performance with high open area of 32%-42%.
● The fine screen sieve is manufactured as a whole with one-time forming processing, reinforced with lining fiber, the tensile strength and useful life are improved, as a result, the craze is been avoided.
● The screen slot is designed with taper shape, which is not easy to block, at the same time, the materials are easy to get through.
● The screen mesh is directly tightened and fixed on the frame, the screen wires are tight and the screen slots are not deformed.
● The screening and grading are accurate and the service life is prolonged.
● Imported polyurethane raw material, unique material formula, improving elasticity and flexibility, wear resistance and corrosion resistance.

Size:1044x702mm 1050x702mm, 1220x702mm, 1380x1000mm.

Screening (1)

Core Technology

●Achieved two Invention Patents .
●Fiber reinforced polyurethane fine screen mesh and its molding method.
●Achieved Golden Prize for the 18th China Invention Exposition.

Application

Screening (2)
Screening (3)
Screening (4)
Screening
